Airborne Gravity Acquisition

Dependable Signals. Broader Coverage. Reduced Time Frames.

Airborne gravity surveys stand as a highly effective exploration tool, delivering dependable signals and enabling broader coverage in significantly reduced time frames.

EDCON-PRJ conducted their first airborne gravity test using the DGS with inertial guidance in a small aircraft. The goal was to compare the gravity data acquired in the Cessna 180 with 82 public domain stations and 1,385 Getech land gravity data present throughout northern Colorado.

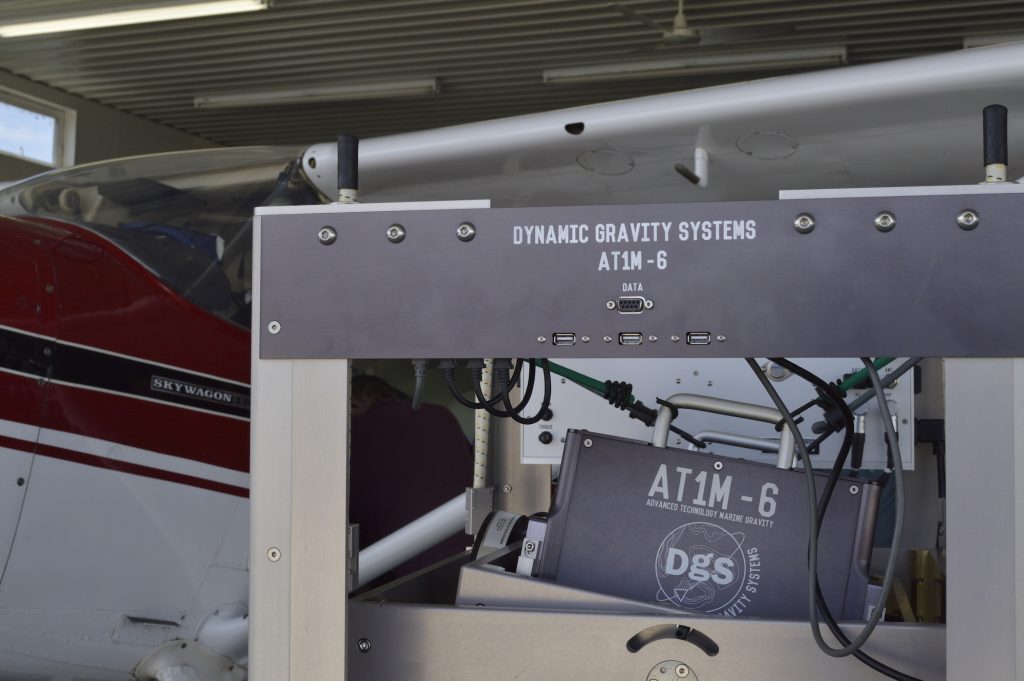

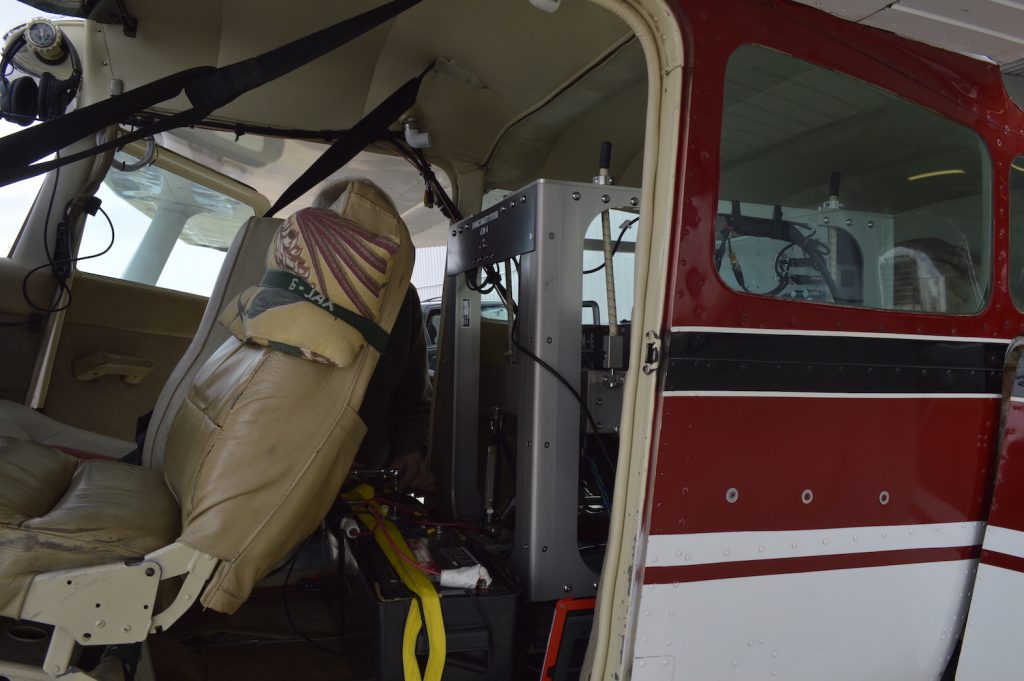

The AT1M Gravity Meter, which was installed in the rear cabin of the aircraft, incorporates an advanced GPS-guided platform control system and inertial navigation corrections that allow for the acquisition of high-resolution data using light aircraft following a pre-planned drape surface.

Equipment

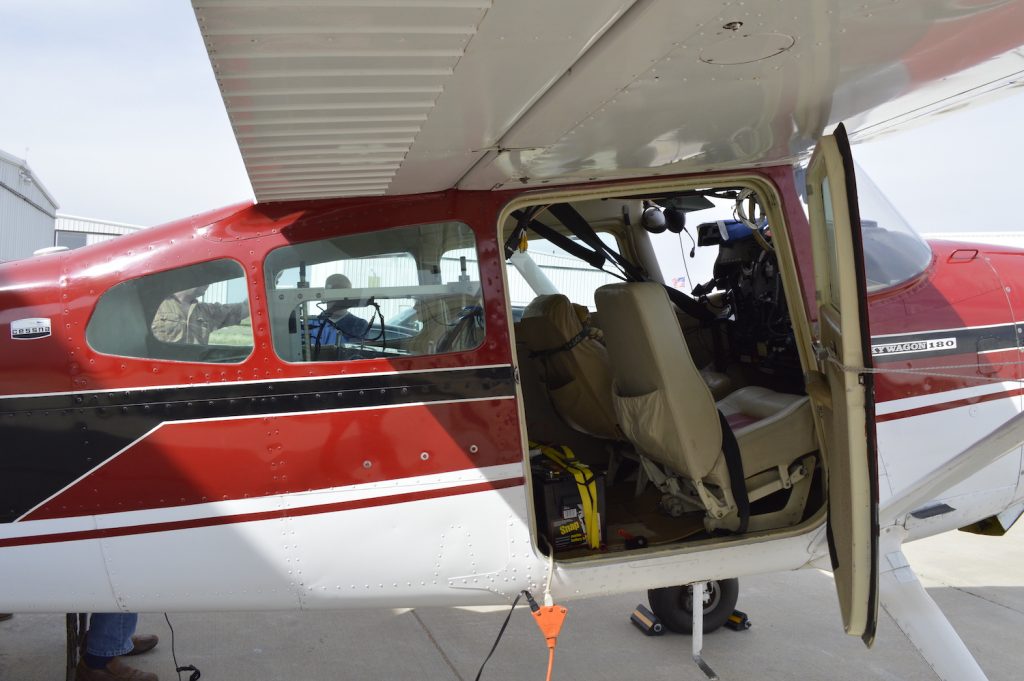

Aircraft: Cessna 180

Gravity Meter: Dynamic Gravity Systems AT1M-6

Survey Navigation: LiNav System Utilizing Pre-planned Drape Guidance

Data Comparison

The figures to the right compare the combined Getech and public gravity data. The first map shows the combined Getech and public data upward continued to 2,000 feet to mat the airborne survey acquisition height.

The second map is the Airborne Free-Air gravity, showing the correclation with the ground and upwrad continued data.

The Airborne Free-air data reflects a spatial resolution of approximately 7km.
